Schuco AS FD 75/90.
Premium Bifold Door
(Scroll Down to Explore)
The reference-class bifold.

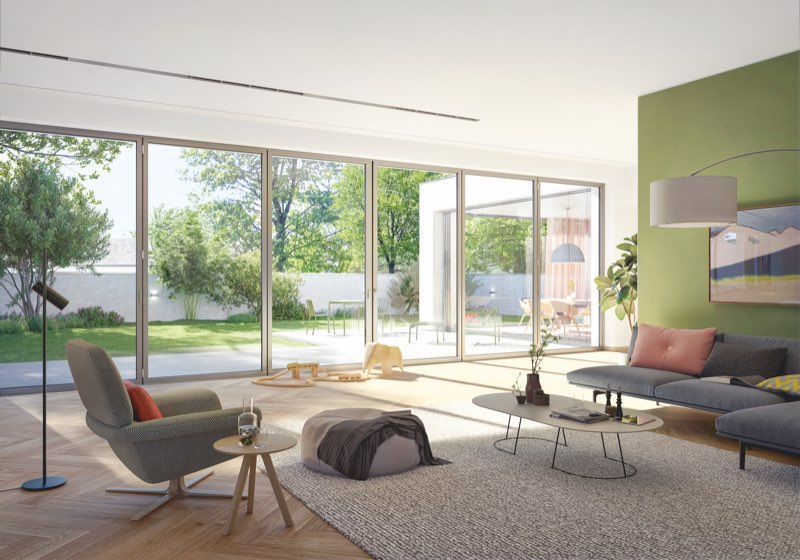

Schüco AS FD 75/90 is the bifold door that German architects specify when they want absolute best‑in‑class performance. It is fitted on Passivhaus‑certified new builds, five‑star hotels, and high‑end residential schemes across Europe. The engineering tolerances are sub‑millimetre, the hardware is fully concealed, and the closed‑position compression seals are rated to weather conditions no other bifold on the UK market can match.
75mm basic profile depth covers most residential extensions. 90mm is specified for passive house work where the thermal requirement is tighter. Both variants are RC2 burglar‑resistance certified and meet Building Regulations Part L without any upgrades.
Specifications
Schüco AS FD 75 or AS FD 90 thermally broken aluminium bifold. 75mm basic profile depth (residential standard) or 90mm (Passivhaus certified). Glass‑fibre reinforced polyamide thermal break with foam insert. Concealed stainless steel running gear rated to 100kg per leaf. Schüco SimplySmart hardware platform — fully integrated with AWS window locking systems. Triple EPDM weather seal.
2 to 7 leaf configurations. Inward or outward opening. Traffic door option. Flush threshold for level access or standard weather‑rated sill. Can be specified alongside matching Schüco AWS windows and ASE sliding doors for fully coordinated schemes. Passivhaus‑certified version (90mm) for ultra‑low‑energy buildings.
Colour Options
Available in Black, Anthracite Grey, and White as standard.
Full RAL colour range available on request.
