Schüco AWS 70.
German-engineered aluminium with high insulation at its core. Slim 51mm sightlines, fully concealed fittings and near-limitless ways to open — the flagship window platform for energy-efficient homes.
Schüco AWS 70.HI
Aluminium Window System
Glazing
Up to 62mm
Insulation
High (HI)
Security
Up to RC3
Frame
Any RAL
Fittings
Concealed
Warranty
10 Year
The Flagship Aluminium Window.
Schüco AWS 70.HI is the high-insulation version of the world’s most specified aluminium window platform. Built on a 70mm basic depth with fully concealed fittings, it pairs slim sightlines with near-limitless configurations — from a single casement to whole ribbon facades — and the thermal performance modern building standards demand.
German engineering, quietly at work.
Every AWS 70.HI window is fabricated to order and fitted by our own installers. Four reasons architects and homeowners keep specifying it.
Engineered insulation
Uf values from 1.5 W/m²K, with glass down to 0.5 W/m²K in triple glazing. A high-insulation core built for energy-efficient building envelopes.
Slim and concealed
A 51mm outer frame and 40mm vent keep sightlines slim, while fully concealed fittings leave clean, uninterrupted lines inside and out.
Every way to open

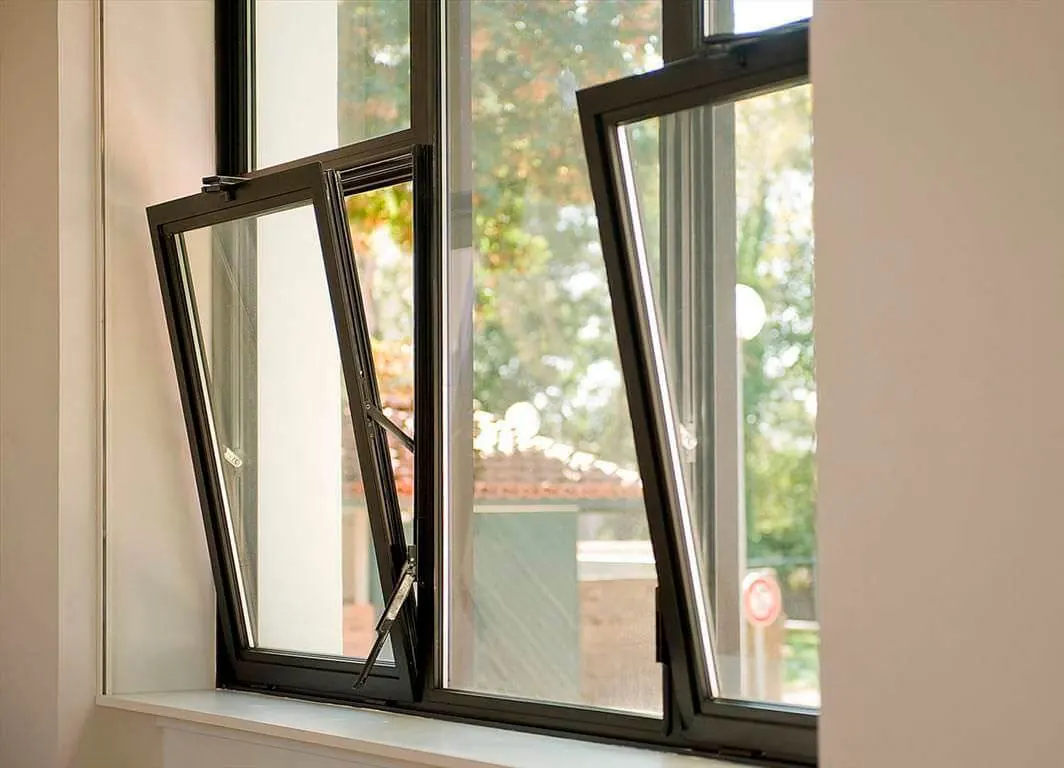

Turn/tilt, side-hung, pivots, projected top-hung, toplights and barrier-free window doors — with optional TipTronic electromechanical operation.
Certified strength
Burglar resistance up to RC3, Class 9A watertightness and vents carrying up to 200kg of glass. Strength that is tested, not claimed.
Specifications
1.5
Uf Value (W/m²K)
High-insulation frame profiles, with Ug values down to 0.5 in triple glazing.
Up to RC3
Burglar Resistance
Certified burglar resistance up to RC3, with PAS24 specifications available.
48 dB
Acoustic
Sound reduction up to 48 dB for calm, quiet interiors.
Up to 62mm
Glazing
Accepts double and triple glazed units from 21mm up to 62mm thick.
Concealed
Fittings
Fully concealed fittings as standard, manual or TipTronic electromechanical.
C2C Silver
Sustainability
Cradle to Cradle Silver certified, fully recyclable aluminium.
10 Years
Guarantee
Backed by our 10-year manufacturing guarantee.
Any RAL
Colours
Powder-coated, anodised or painted in any RAL colour.
Technical
Built for performance
A 70mm basic-depth, high-insulation aluminium platform accepting glazing up to 62mm. Vents up to 1700 x 2500mm and 200kg, tested to Class 4 air permeability, Class 9A watertightness and Class C5 wind load. Cradle to Cradle Silver certified, with a 10‑year guarantee.
Configurations
Flexible design options
Punched openings, ribbon windows and facade inserts from one platform, with corner and structural mullions, toplights, integrated sun shading and barrier-free zero-level thresholds.
Finishes
Made to match your space
Powder-coated, anodised or painted in any RAL colour, with dual-colour options for a different finish inside and out. Mechanical strength Class 4 and corrosion protection Class 5 keep every finish looking sharp for decades.
Make it yours.
Selected colour · Agate Grey
How long does installation take?
Most window installs are completed in 1-2 days. Doors typically take 1-3 days depending on threshold work. Full-house or multi-room replacements run 3-7 days. We give you a precise schedule at the survey stage so you can plan around it, no open-ended jobs.
Is the installation FENSA-registered, and do I get the certificate?
Yes. Apex Glazing is FENSA-registered (Reg 40373). On completion you receive a FENSA certificate, which satisfies Building Regulations Part L compliance and removes the need for separate council approval. Certificates are issued within 30 days and stored in your FENSA online account for future house sales.
What warranty do I get?
10-year manufacturer warranty on the product itself (frame, glass seal, hardware) plus a 12-month workmanship guarantee from us on the installation. We've been trading since 2005 with 6,340 completed projects and a 5.0-star Google rating, we'll come back if anything's not right.
Do you remove and dispose of the old windows or doors?
Yes, removal of existing units, safe disposal at a licensed waste facility, making good of internal and external reveals, and a thorough final clean-up are all included in the quoted price. There are no extras for skip hire, scaffolding, or waste removal.
Can you match existing windows for a phased replacement?
Yes. We can RAL colour-match the new frames to your existing units, replicate sightlines, glazing bar layouts, and hardware style to keep a phased replacement consistent. Bring photos to the survey, or we'll come and measure the existing windows so the new ones blend in seamlessly when fitted alongside.
