APX Evolution.
Our next-generation slim-frame slider. A 25mm junction, 0.88 W/m²K, and panels up to 3.5m × 3.5m at 500kg each.
APX Evolution
Slimline Aluminium Sliding Door
Junction
25mm
U-Value (W/m²K)
From 0.88
Max Panel
500kg
Tracks
Up to 4
Warranty
10 Year
Install
FENSA Certified
Our next‑generation sliding door.

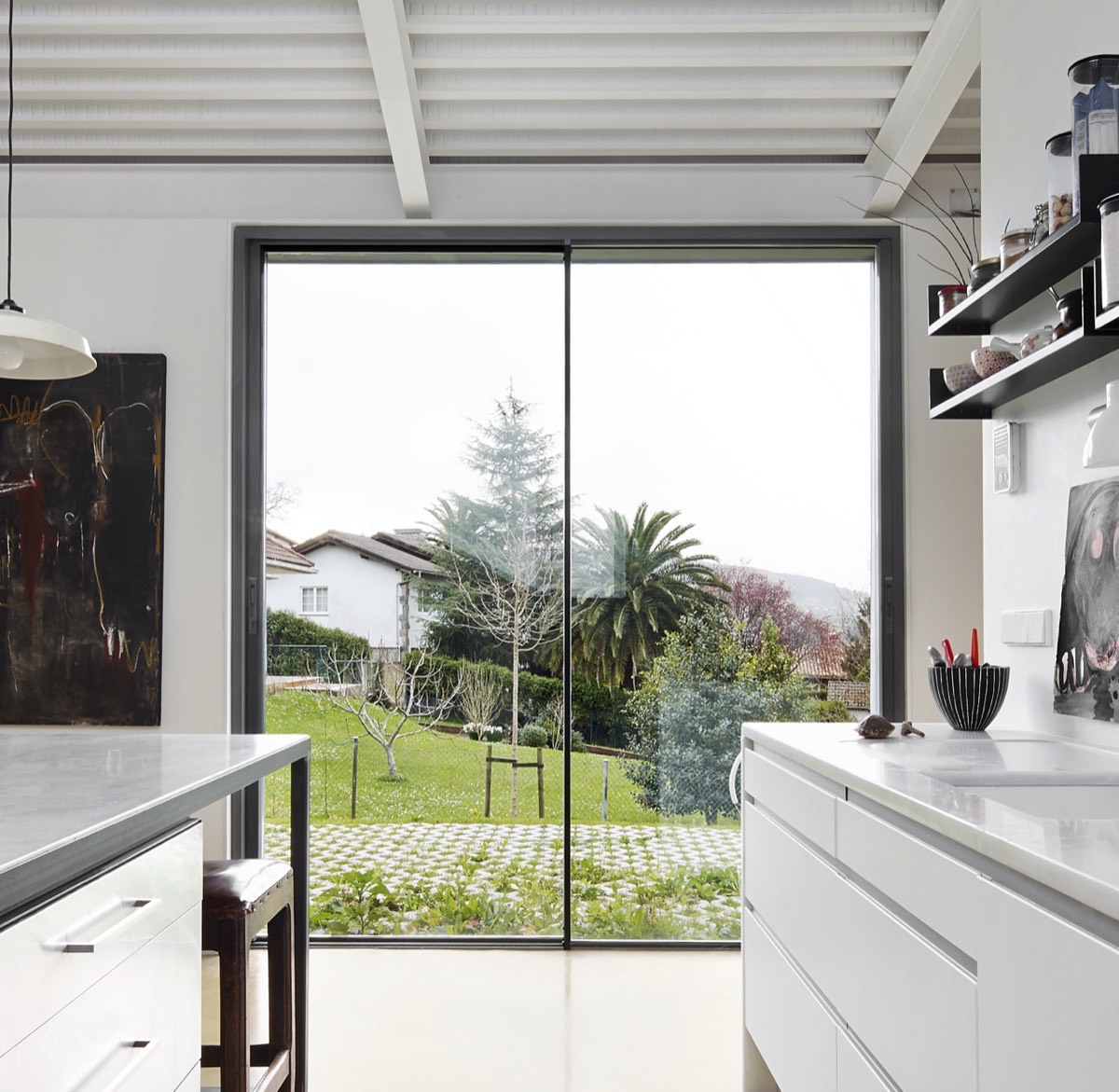

The APX Evolution is our flagship minimal‑sightline sliding door , a reference product across European residential architecture. The opening sashes sit fully embedded inside the frame profile, leaving an interlock between closed panels of just 25mm. At that thickness, the vertical line between two meeting panels is barely visible.
Individual panels can weigh up to 500kg each and measure 3.5m × 3.5m. That means single sheets of glass over 12m² are well within the system’s engineering tolerance , at which point the door stops being a door and starts being a moving wall.
Motorised. Pocketed. Cornered.
The Evolution platform is configurable in ways standard sliding doors simply are not. Pocket (Galandage) versions slide the panels completely into a wall cavity, so the opening disappears. Corner versions slide two panels at 90° into each other, opening the entire corner of the building. Motorised variants open at the touch of a button.
0.88 W/m²K whole‑door U‑value, 43dB acoustic attenuation, Class 4 air permeability, C5 wind resistance , all at the very top of what any sliding door achieves. This is the door we specify when the client wants the best full stop.
Specifications
APX Evolution sliding system. Frame depths 160mm (double track), 248mm (triple), 336mm (four‑track). Thermally broken with polyamide isolator. Compatible with 28mm, 36mm, and 44mm insulated glazing units. Concealed multi‑point locking. Stainless steel tandem roller carriages rated to 500kg per panel. Continuous EPDM weather seal. Optional motorisation via 24V actuator.
Single track up to four‑track. Pocket system (Galandage) slides panels fully into wall cavity. 90° corner junctions and curved bay junctions. Single or double meeting junctions. Threshold options: recessed, step‑over, or flush (level access compliant). Motorised opening available as option.
Standard colour range: Black (RAL 9005), Anthracite Grey (RAL 7016), and White (RAL 9016). Bespoke finish: full RAL colour palette available on request, including textured, matte, satin, and dual-colour (different inside vs outside) options. Powder-coated to BS EN 12206-1 with 25-year colour-stability guarantee.
